Brand Name : RECODA
Model Number : M604
Certification : CE, FCC , ISO2008
Place of Origin : Guangdong , China
MOQ : 1 Unit
Payment Terms : T/T, Western Union , Paypal
Supply Ability : 1200 Units Per Month
Delivery Time : 3 ~ 8 work days
Operating system : Linux
Signal system : PAL / NTSC
Video / Audio Input : 6 Channels
Feature : 3G , GPS, WIFI
Alarm input : 6 Channels
Local storage : Dual SD Card , Maxmium 64GB for each
Serial interface : 1 RS232 & 2 RS485
Power input : DC8V ~ 36V
Price : negotiation
Dual SD Cards support 4 CH h.264 Mobile Vehicle DVR with GPS 3G WIFI for Bus Car
Features:
Description:
Specifications:
| Operating System | Linux |
| Video encode standard | H.264 |
| Graphics Operation Interface | System parameters can be set through external display and remote controller |
| Security Management | 2 level management user password, administrator password, support encrypted transmission |
| Video Input | 4-channel video input |
| Video Output | 1channel video output; 1.0Vp-p, 75Ω |
| Video Compression | H.264. Hisilicon hi-performance processor. |
| Frame Rate | PAL: 100FPS, up to 25FPS/CH; NTSC: 120 FPS, up to 30 FPS/CH |
| Video Resolution | CIF, HD1 &D1 for option, supporting 2CH D1+ 2CHCIF |
| Audio Input & Output | 4CH input, 1CH output |
| Audio | G.726 coding |
| Intercom | 2 way live intercom supported |
| Recoding Storage | 2PCS SD cards, Max 128GB, with cycle recording. |
| File System | ASF/FAT32 |
| Video Strategies | Default record by startup, time recording&recording triggered by alarm& manual recording optional |
| Video Search | by time, type, storage device and other conditions |
| Alarm Input & Output | 4-CH on/off signal alarm input, 1-CH on/off alarm output |
| Alarm Recording | Prerecording15S before alarm, duration of recording upon alarm is optional from 30s ~ 30min |
| Communication Ports | RJ45 10M/100M Ethernet port , RS232 , RS485 |
| WIFI | Embedded Wi-Fi module; |
| GPS | Support external GPS |
| 3G Module | WCDMA/EVDO |
| PTZ Control | Support PTZ control realized by local |
| Power supply | DC 8-36V |
| Weight | 1.02kg |
Dual SD Cards support 4 CH h.264 Mobile Vehicle DVR with GPS 3G WIFI for Bus Car

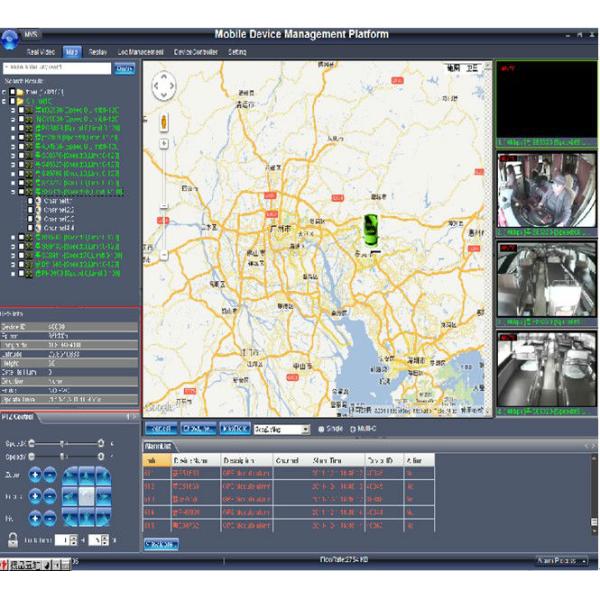

Client Software

Application:

|
|
